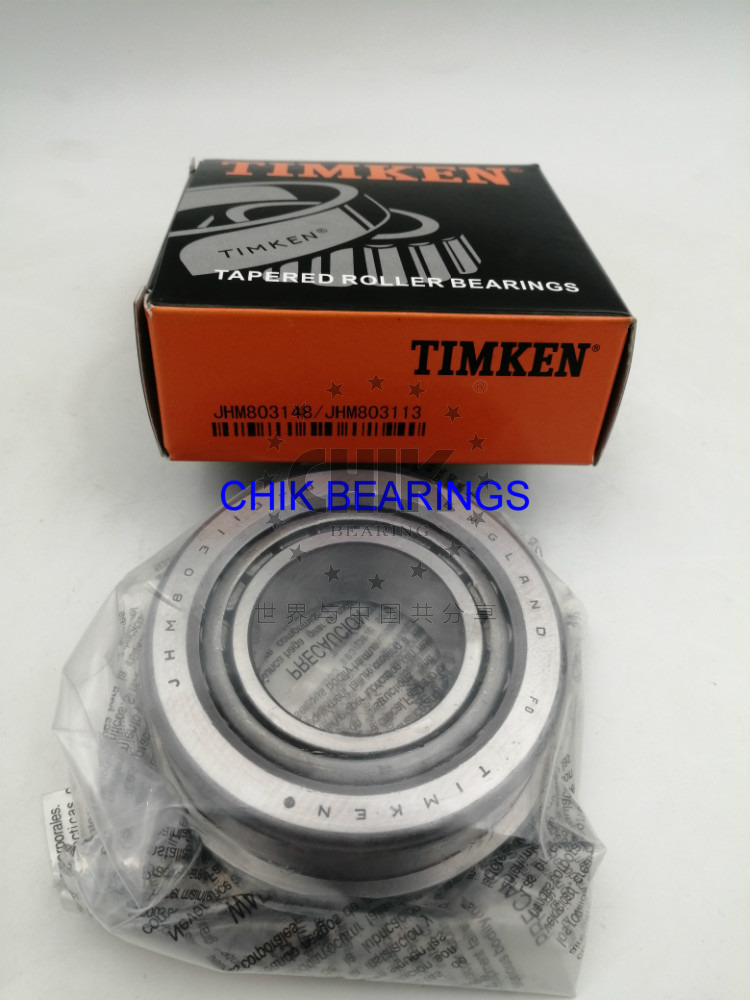

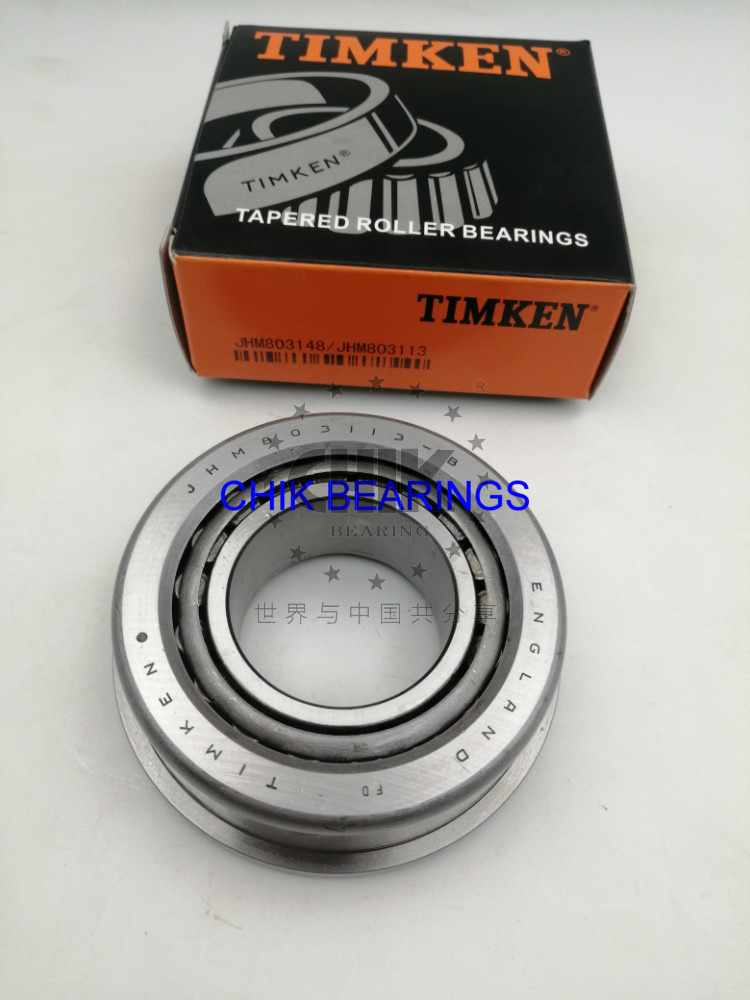

JHM803148/JHM803113 Tapered Roller Bearing 45x90x32mm Flanged Cup

The JHM803148/JHM803113 is a single-row tapered roller bearing from the JHM inch series, supplied as a separable cone (JHM803148) and flanged cup (JHM803113B) set. The tapered geometry allows it to carry combined radial and axial loads in one direction, while the flanged outer ring (TSF configuration) provides axial location without requiring a separate housing shoulder — a design that simplifies mounting in hub and shaft assemblies where the cup must be positively retained.

Model:
JHM803148/JHM803113
Brand:
Timken/CHIK

Model:	JHM803148/JHM803113
Type:	Tapered Roller Bearing
Size:	45x90x32mm
Availability:

Quantity:



Inquire Add to Basket

HM803148/JHM803113 Tapered Roller Bearing 45x90x32mm Flanged Cup

Product Overview

Item	Details
Model	JHM803148/JHM803113 (JHM803148 cone + JHM803113B flanged cup)
Bearing Type	Single Row Tapered Roller Bearing (Inch Series, TSF Flanged Cup)
Product Status	Aftermarket replacement, interchangeable with common part numbers
Primary Application	General-purpose radial/axial load support in wheel hubs, drivetrain, industrial machinery and agricultural equipment
Design Advantage	Tapered geometry carries combined radial and axial loads; flanged cup (TSF) provides axial location without a separate shoulder

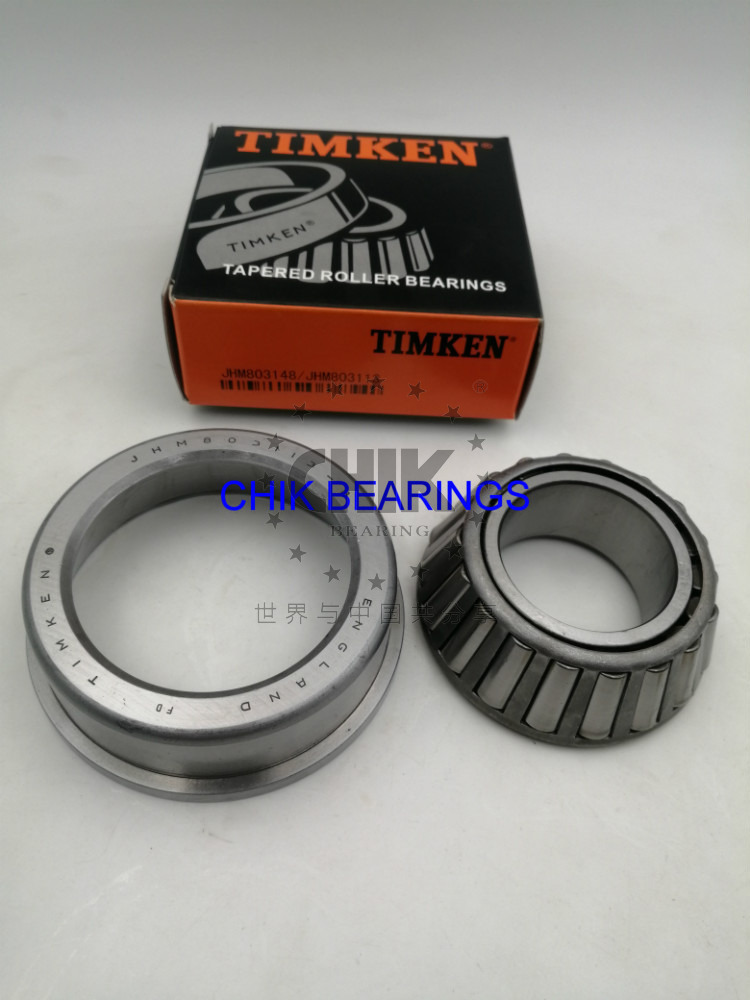

Structure	Separable cone and cup; pressed steel cage

Specifications

Item	Data
Model	JHM803148/JHM803113
Bearing Type	Single Row Tapered Roller Bearing
Cone Part Number	JHM803148
Cup Part Number	JHM803113B (flanged)
Bore Diameter (d)	45.000 mm
Outer Diameter (D)	90.000 mm
Width (T)	32.000 mm
Weight	Approx. 0.96 kg
Enclosure	Open
Cage	Pressed Steel
Material	Chrome steel
Precision	Standard

Supply

Item	Details
MOQ	100 pcs
Stock Status	Generally available from stock; for bulk orders, availability depends on the production schedule.
Packaging	Individual box + outer carton + pallet; neutral or customized packaging available for bulk orders
Lead Time	3–7 days for stock; 7–15 days for bulk; 15–25 days for customized/OEM orders
Shipping Methods	Bulk orders: air / sea / rail. Sample orders: DHL / FedEx / UPS / TNT for B2B evaluation only
Trade Terms	EXW, FOB, CIF, DDP (negotiable)
Loading Port	Shanghai / Ningbo / Qingdao / Shenzhen (or as required)
Sample Order	Available for B2B evaluation only; sample cost and freight to be confirmed
OEM / ODM	Accepted for bulk orders; custom logo, packaging and labels available
Quality Control	100% inspection before shipment
