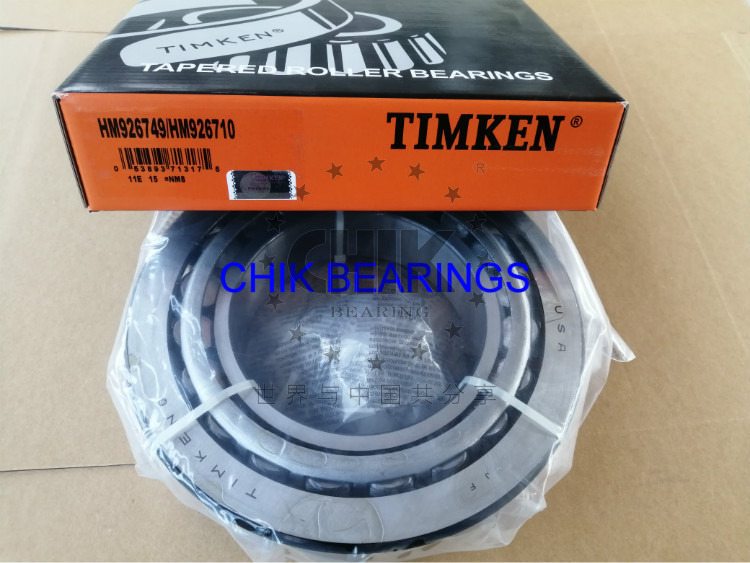

Timken HM926749/HM926710 Tapered Roller Bearing 127.8x228.6x53.98mm Heavy Duty Mining Construction Wheel Hub Bearing

The HM926749/HM926710 is a heavy-duty single-row tapered roller bearing supplied as a separable cone (HM926749) and cup (HM926710) set. With a bore of 127.792 mm (5.0312 in) , an outer diameter of 228.600 mm (9.0000 in) and a width of 53.975 mm (2.1250 in) , it sits in the upper size range of inch-series tapered roller bearings and is designed for combined radial and axial loads under demanding operating conditions. The separable design allows the cone and cup to be mounted independently, simplifying inspection and replacement.

Model:
HM926749/HM926710
Brand:
Timken/CHIK

Model:	HM926749/HM926710
Type:	tapered roller bearing
Size:	127.8x228.6x53.98mm
Availability:

Quantity:



Inquire Add to Basket

HM926749/HM926710 Tapered Roller Bearing 127.792x228.6x53.975mm Heavy Duty

Product Overview

Item	Details
Model	HM926749/HM926710
Bearing Type	Single Row Tapered Roller Bearing (TS, Imperial)
Configuration	Cone HM926749 + Cup HM926710, separable set
Primary Application	Heavy-duty wheel hubs, pinion shafts, industrial gearboxes and off-highway equipment
Design Advantage	Conical raceways and tapered rollers handle combined radial and axial loads in one direction; separable design simplifies mounting and inspection

Specifications

Item	Data
Model	HM926749/HM926710
Bearing Type	Single Row Tapered Roller Bearing (TS, Imperial)
Cone Part Number	HM926749
Cup Part Number	HM926710
Bore Diameter (d)	127.792 mm (5.0312 in)
Outer Diameter (D)	228.600 mm (9.0000 in)
Total Width (T)	53.975 mm (2.1250 in)
Inner Ring Width (B)	49.428 mm (1.9460 in)
Outer Ring Width (C)	38.100 mm (1.5000 in)
Dynamic Radial Rating C90 (90M revs)	152,000 N (34,200 lbf)
Dynamic Radial Rating C1 (1M revs)	586,000 N (132,000 lbf)
Dynamic Axial Rating Ca90 (90M revs)	192,000 N (43,100 lbf)
Static Radial Rating C0	673,000 N (151,000 lbf)
Weight	8.50 kg (18.8 lb)

Supply

Item	Details
MOQ	100 pcs
Stock Status	Generally available from stock; for bulk orders, availability depends on the production schedule.
Packaging	Individual box + outer carton + pallet; neutral or customized packaging available for bulk orders
Lead Time	3–7 days for stock; 7–15 days for bulk; 15–25 days for customized/OEM orders
Shipping Methods	Bulk orders: air / sea / rail. Sample orders: DHL / FedEx / UPS / TNT for B2B evaluation only
Trade Terms	EXW, FOB, CIF, DDP (negotiable)
Loading Port	Shanghai / Ningbo / Qingdao / Shenzhen (or as required)
Sample Order	Available for B2B evaluation only; sample cost and freight to be confirmed
OEM / ODM	Accepted for bulk orders; custom logo, packaging and labels available
Quality Control	100% inspection before shipment

Payment

Item	Details
Payment Methods	T/T, PayPal, Credit Card, etc.
Payment Terms	Small orders: 100% payment in advance. Bulk orders: 30% deposit, 70% before shipment. Negotiable for long-term partners.
Currency	USD / EUR / CNY
Trade Terms	EXW, FOB, CIF, DDP (negotiable)
Invoice	Commercial invoice, packing list and required shipping documents provided
