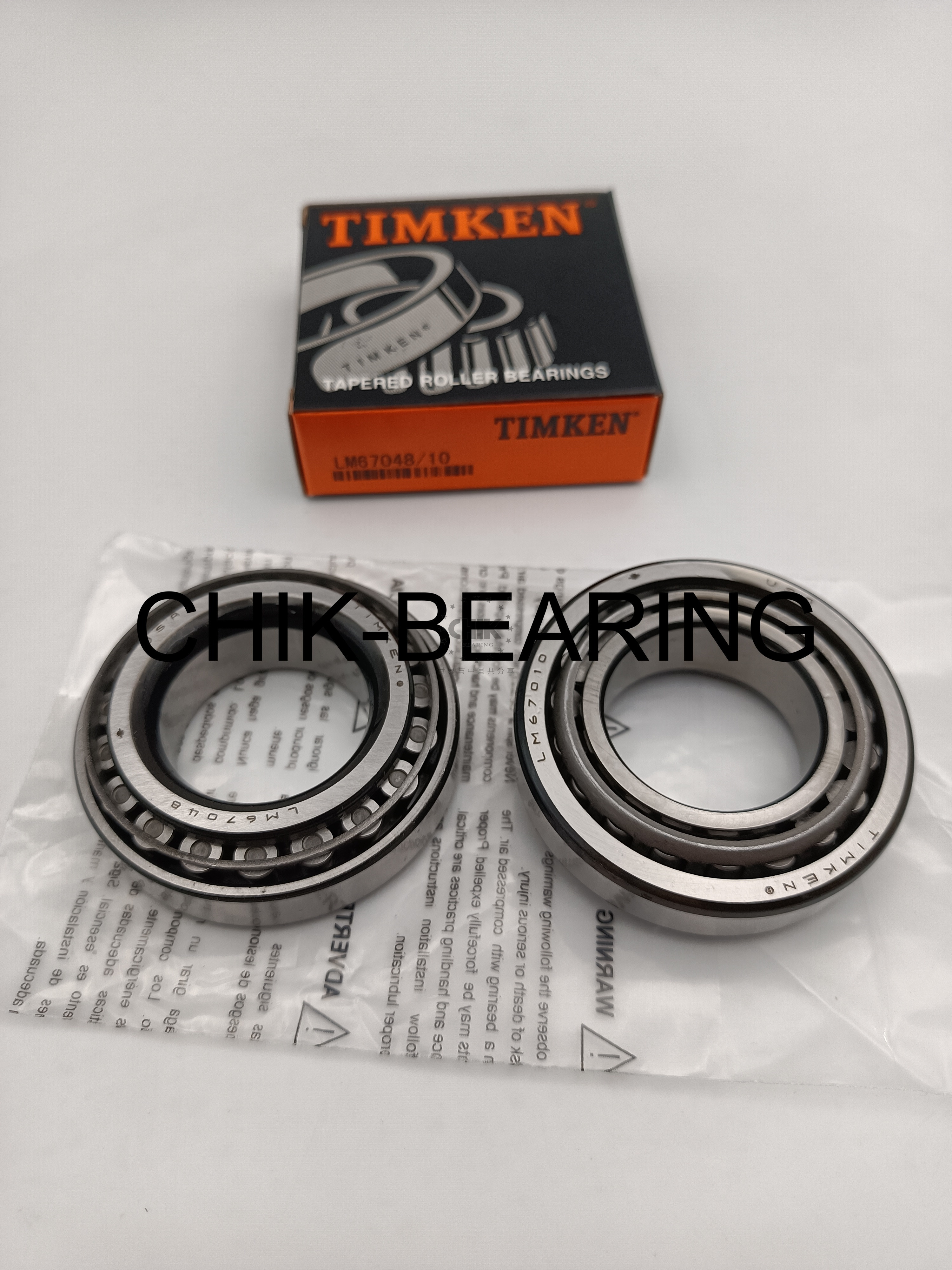

The Timken LM67048/LM67010 (SET6) is a genuine Timken single-row tapered roller bearing supplied as a separable cone and cup set. With a bore of 31.75 mm (1.25 in) , an outer diameter of 59.13 mm (2.328 in) and a width of 15.875 mm (0.625 in) , it is one of the most widely used inch-series tapered roller bearings in trailer, automotive and light industrial applications. The conical raceways and tapered rollers allow it to carry combined radial and axial loads in one direction, while the separable design simplifies inspection and replacement
LM67048/LM67010
Timken/CHIK
| Model: | |
|---|---|
| Type: | |
| Material: | |
| Quantity: | |
Item | Details |
|---|---|
Model | Timken LM67048/LM67010 (SET6) |
Bearing Type | Single Row Tapered Roller Bearing (TS, Imperial) |
Configuration | Cone LM67048 + Cup LM67010, separable set |
Product Status | Genuine Timken product, not an aftermarket replacement |
Primary Application | Trailer wheel bearing; also used in pickup/light truck hubs and general industrial drives |
Design Advantage | Conical raceways and tapered rollers handle combined radial and axial loads in one direction |
Structure | Separable cone and cup for simplified mounting, inspection and replacement |
Item | Data |
|---|---|
Model | Timken LM67048/LM67010 (SET6) |
Bearing Type | Single Row Tapered Roller Bearing (TS, Imperial) |
Cone Part Number | LM67048 |
Cup Part Number | LM67010 |
Bore Diameter (d) | 31.750 mm (1.2500 in) |
Outer Diameter (D) | 59.131 mm (2.3280 in) |
Total Width (T) | 15.875 mm (0.6250 in) |
Inner Ring Width (B) | 16.764 mm (0.6600 in) |
Outer Ring Width (C) | 11.811 mm (0.4650 in) |
Dynamic Radial Rating C90 (90M revs) | 12,100 N (2,720 lbf) |
Dynamic Radial Rating C1 (1M revs) | 46,700 N (10,500 lbf) |
Dynamic Axial Rating Ca90 (90M revs) | 8,550 N (1,920 lbf) |
Static Radial Rating C0 | 44,600 N (10,000 lbf) |
e Factor | 0.41 |
K Factor | 1.42 |
Y Factor | 1.46 |
Weight | 0.20 kg (0.4 lb) |
Enclosure | Open |
Cage | Pressed Steel |
Precision | Class 2 (Standard) |
Operating Temperature | −40 °C to +120 °C |
