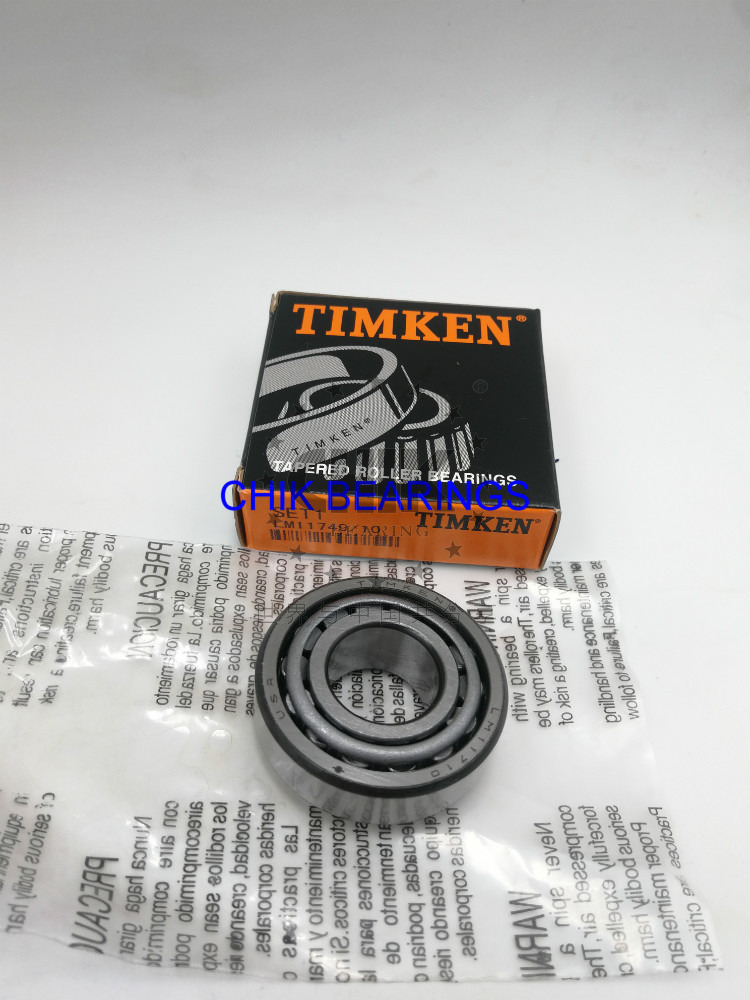

Timken SET1 Wheel Bearing LM11749/LM11710 17.46x39.88x13.84mm Outer Front Rear

The Timken SET1 is a genuine Timken wheel bearing and race set, supplied as a matched cone (LM11749) and cup (LM11710) pair. With a bore of 17.463 mm (0.6875 in) , an outer diameter of 39.878 mm (1.5700 in) and a combined width of 13.843 mm (0.5450 in) , it is one of the most widely used small-bore tapered roller bearing sets in the passenger vehicle aftermarket. The separable cone-and-cup design allows independent mounting and inspection, while the tapered geometry carries combined radial and axial loads generated by vehicle weight and cornering forces

Model:
Set 1 / LM11749/LM11710
Brand:
Timken/CHIK

Model:	LM11749/LM11710
Type:	wheel bearing
Size:	17.46x39.88x13.84mm
Availability:

Quantity:



Inquire Add to Basket

Timken SET1 Wheel Bearing LM11749/LM11710 17.46x39.88x13.84mm Outer Front Rear

Product Overview

Item	Details
Model	Timken SET1
Bearing Type	Wheel Bearing and Race Set (Single Row Tapered Roller Bearing, TS Imperial)
Components	Cone LM11749 + Cup LM11710
Product Status	Genuine Timken product
Primary Application	Front or rear outer wheel bearing on passenger cars and light trucks
Design Advantage	Conical raceways and tapered rollers handle combined radial and axial loads; separable cone and cup simplify mounting and inspection

Specifications

Item	Data
Model	Timken SET1 (LM11749/LM11710)
Bearing Type	Single Row Tapered Roller Bearing (TS, Imperial)
Cone Part Number	LM11749
Cup Part Number	LM11710
Bore Diameter (d)	17.463 mm (0.6875 in)
Outer Diameter (D)	39.878 mm (1.5700 in)
Total Width (T)	13.843 mm (0.5450 in)
Inner Ring Width (B)	14.605 mm (0.5750 in)
Outer Ring Width (C)	10.668 mm (0.4200 in)
Dynamic Radial Rating C1 (1M revs)	29,400 N (6,600 lbf)
Static Radial Rating C0	23,400 N (5,260 lbf)
Dynamic Radial Rating C90 (90M revs)	7,610 N
Dynamic Axial Rating Ca90 (90M revs)	3,730 N
e Factor	0.29
Y Factor	2.1
K Factor	2.04
Weight	Approx. 0.08–0.10 kg

Supply

Item	Details
MOQ	100 pcs
Stock Status	Generally available from stock; for bulk orders, availability depends on the production schedule.
Packaging	Individual box + outer carton + pallet; neutral or customized packaging available for bulk orders
Lead Time	3–7 days for stock; 7–15 days for bulk; 15–25 days for customized/OEM orders
Shipping Methods	Bulk orders: air / sea / rail. Sample orders: DHL / FedEx / UPS / TNT for B2B evaluation only
Trade Terms	EXW, FOB, CIF, DDP (negotiable)
Loading Port	Shanghai / Ningbo / Qingdao / Shenzhen (or as required)
Sample Order	Available for B2B evaluation only; sample cost and freight to be confirmed
OEM / ODM	Accepted for bulk orders; custom logo, packaging and labels available
Quality Control	100% inspection before shipment

Payment

Item	Details
Payment Methods	T/T, PayPal, Credit Card, etc.
Payment Terms	Small orders: 100% payment in advance. Bulk orders: 30% deposit, 70% before shipment. Negotiable for long-term partners.
Currency	USD / EUR / CNY
Trade Terms	EXW, FOB, CIF, DDP (negotiable)
Invoice	Commercial invoice, packing list and required shipping documents provided
