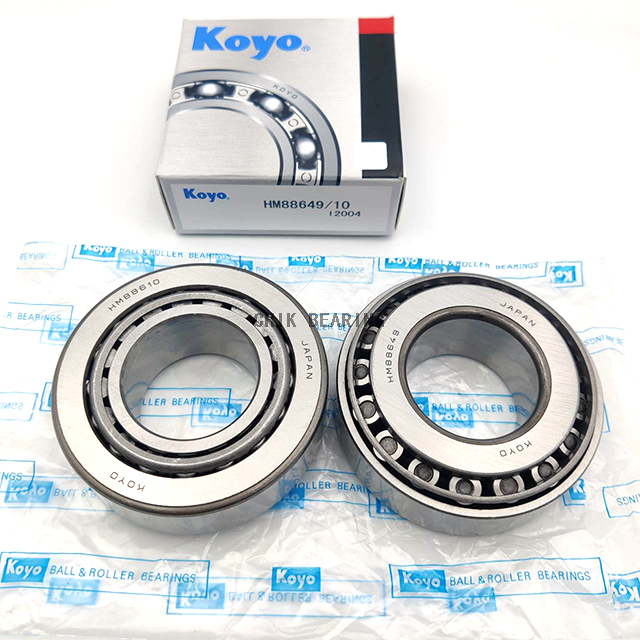

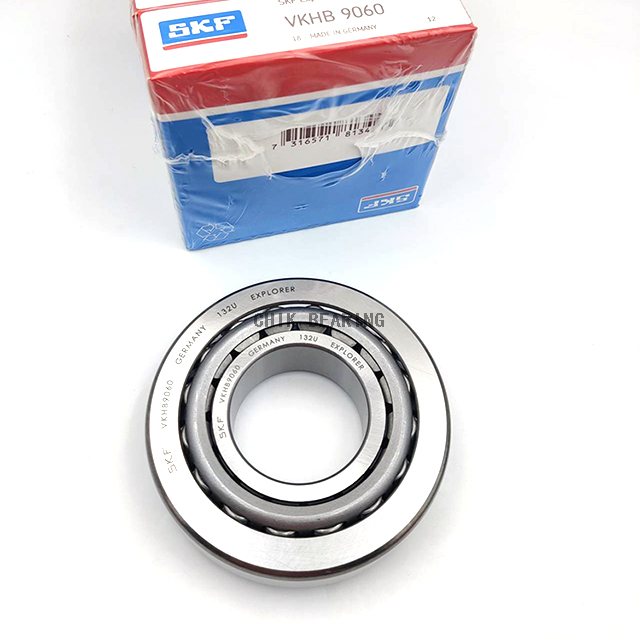

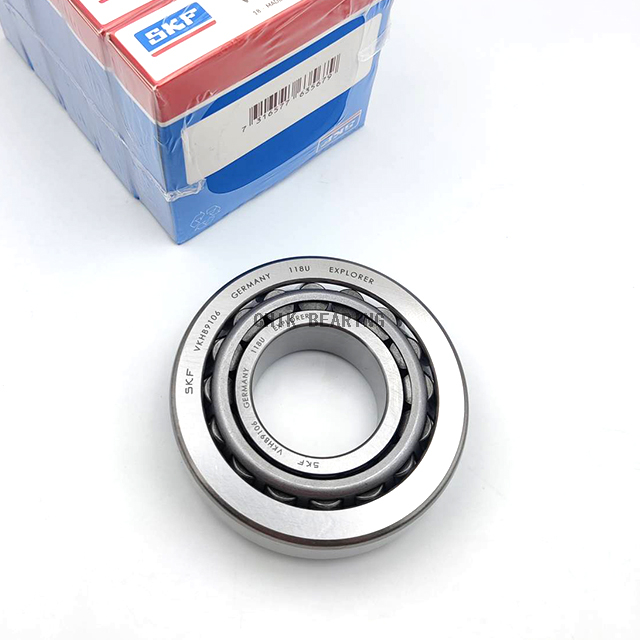

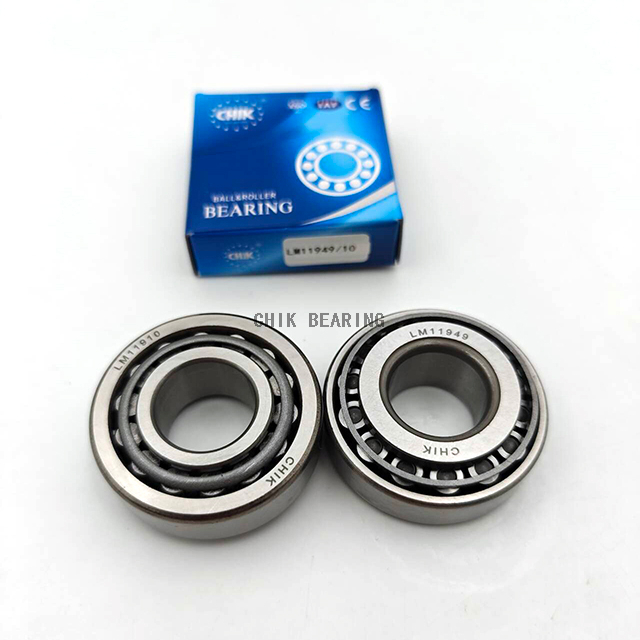

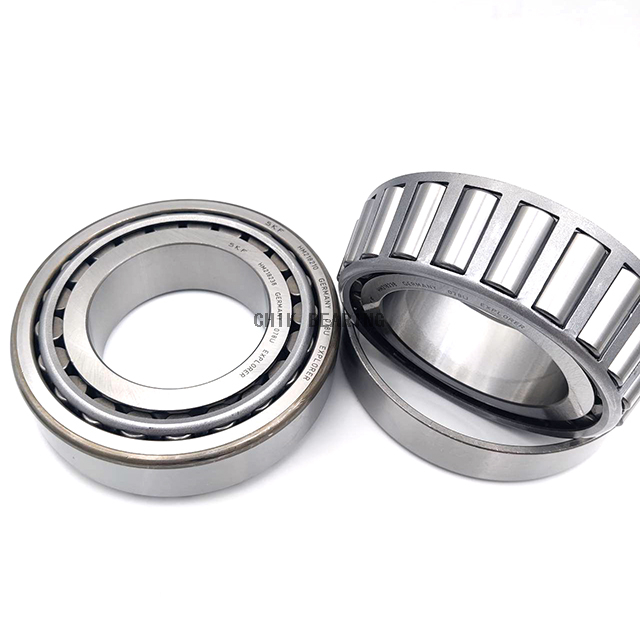

HM88649 HM218238 LM11949 LM29749 VKHB9060 VKHB9106 Tapered Roller Bearings

Model NO.	HM88649 HM218238 LM11949 LM29749 VKHB9060 VKHB9106	Type	Tapered Roller Bearing
Rolling Body:	Roller Bearing	Precision:	P6, P5, P4, P3...
Clearance:	C2, C0, C3, C4, C5	Hardness	HRC 60-65
Vibration:	Z1V1, Z2V2, Z3V3, Z4V4	Rings Material:	GCr15
Feature:	Low Noise. Long Life	Seals Type:	OPEN
Service:	OEM Service, Sample Available	Export Markets:	Global
Quality Control:	100% inspected	Number of Row：	Single Row
Packaging Details：	Carton Box or Plywood Box +Pallet OR as per your requirement
Application：	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining .etc

Tapered Roller Bearing

taper roller bearing 32200 series				taper roller bearing 31300 series
No.	d	D	T	No.	d	D	T
32203	17	40	17.25
32204	20	47	19.25	31304	20	52	16.25
32205	25	52	19.25	31305	25	62	18.25
32206	30	62	21.25	31306	30	72	20.75
32207	35	72	24.25	31307	35	80	22.75
32208	40	80	24.75	31308	40	90	25.25
32209	45	85	24.75	31309	45	100	27.25
32210	50	90	24.75	31310	50	110	29.25
32211	55	100	26.75	31311	55	120	31.5
32212	60	110	29.75	31312	60	130	33.5
32213	65	120	32.75	31313	65	140	36
32214	70	125	33.25	31314	70	150	38
32215	75	130	33.25	31315	75	160	40
32216	80	140	35.25	31316	80	170	42.5
32217	85	150	38.5	31317	85	180	44.5
32218	90	160	42.5	31318	90	190	46.5
32219	95	170	45.5	31319	95	200	49.5
32220	100	180	49	31320	100	215	56.5
taper roller bearing 30200 series				taper roller bearing 3200 series
No.	d	D	T	No.	d	D	T
30203	17	40	13.5	32004	20	42	15
30204	20	47	15.5	32005	25	47	15
30205	25	52	16.5	32006	30	55	17
30206	30	62	17.5	32007	35	62	18
30207	35	72	18.5	32008	40	68	19
30208	40	80	20	32009	45	75	20
30209	45	85	21	32010	50	80	20
30210	50	90	22	32011	55	90	23
30211	55	100	23	32012	60	95	23
30212	60	110	24	32013	65	100	23
30213	65	120	25	32014	70	110	25
30214	70	125	26.5	32015	75	115	25
30215	75	130	27.4	32016	80	125	29
30216	80	140	28.5	32017	85	130	29
30217	85	150	31	32018	90	140	32
30218	90	160	33	32019	95	145	32
30219	95	170	35	32020	100	150	32
30220	100	180	37.5	32021	90	140	32

CHIK BEARING PACKING

1.Poly sleeves +Single box(with chik mark ) +Carton;

2.Industrial packaging ;

3.Customer design (Oem service).

CHIK BEARING DELIVERY

1.Small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.

2.Large quantity, can delivery by air,by sea ,this is port to port.

packing and delivery-1

CHIK BEARING established in 2015, is a professional bearings manufacturer integrating the research, development and sales. We have a floor area of 15,000 square meters and a plant area of 8,800 square,equipped with modern production equipment and advanced detection instruments.Our major products include deep groove ball bearing,tapered roller bearing,spherical roller bearing and other kinds of high precision bearings.

CHIK BEARING has the latest measurement and quality assurance systems,utilizing high quality and precise messuring equipment. with which we conduct all necessary tests to gurantee high quality of entire production.Each production process is also in strict accordance with the ISO9001 quality management system, which effectively guarantees the precise of products and stability of the performance. CHIK bearings have been widely applied to metallurgical, mining, petroleum, chemical, papermaking and engineering machinery industries.

Our Factory

Factory-2

1. What is the market scope?

Our bearings are sold globally,Among them, it is sold to the domestic market (30.00%), North America (8.00%), South America (8.000%), Eastern Europe (8.00%), Nordic Europe (8.00%), Western Europe (7.00%), Southern Europe (7.000%), Southeast Asia (5.00%), Middle East (5.00%), East Asia (5.00%), and Africa (4.00%). We have a professional foreign trade service team of 5-10 people.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Ball Bearing,Roller Bearing.

4. Why should you buy bearing from us?

Chik has been successful cooperation with many overseas customers, leaving good reputation of credibility with a high-quality product quality. With adequate resource, strict quality control, high-quality service, and competitive price.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；

Accepted Payment Currency:USD;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English

For more detailed information, please contact us!
