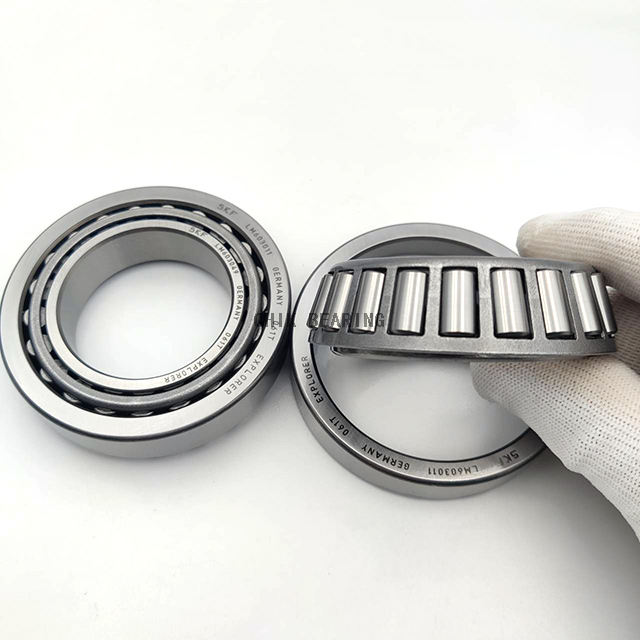

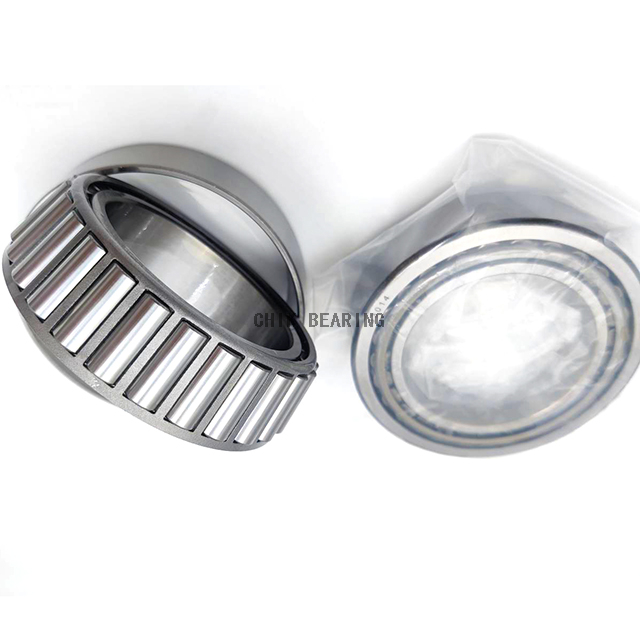

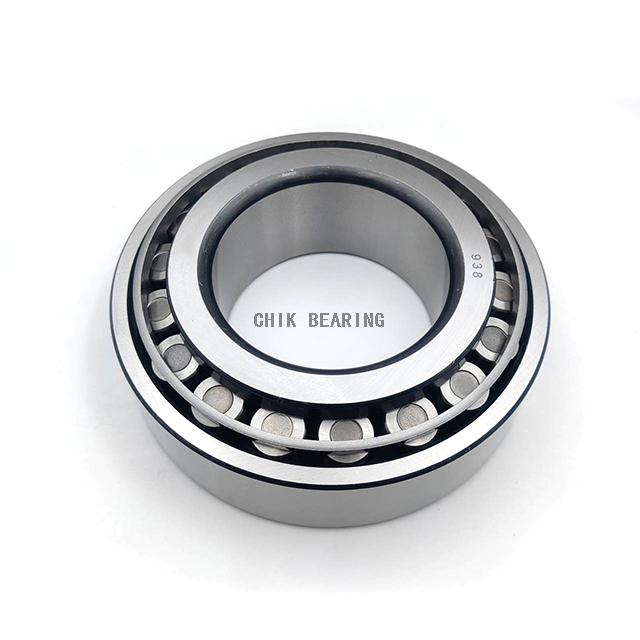

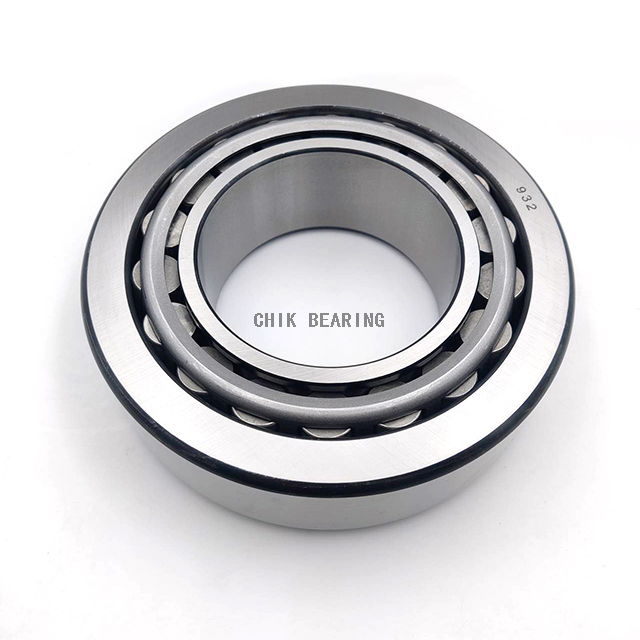

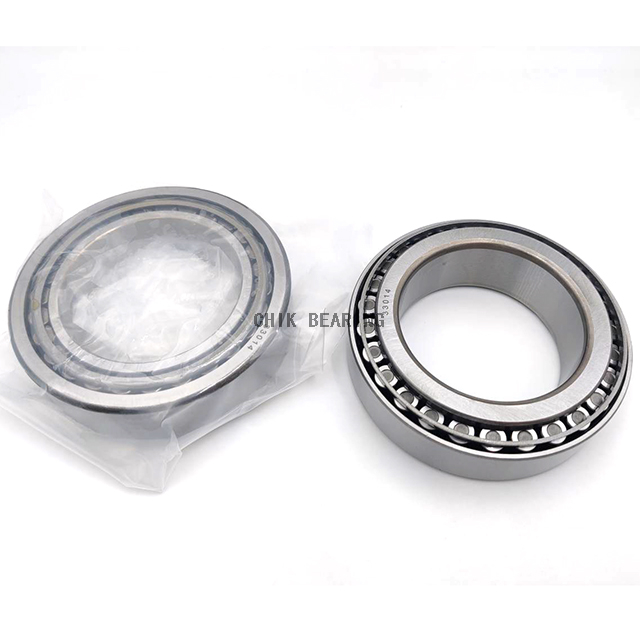

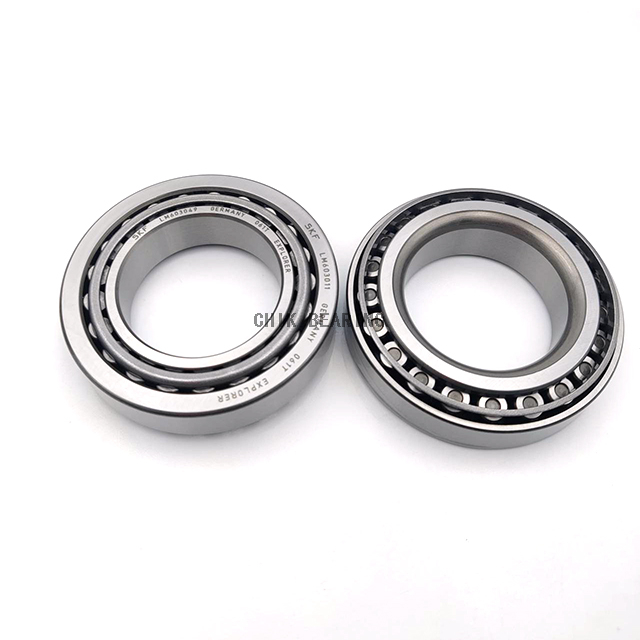

Hot sale 932 938 LM603049 33014 Tapered Roller Bearings

A tapered roller bearing is a radial thrust type rolling bearing in which the rolling elements are tapered rollers. There are two kinds of small cone angle and large cone angle. The small cone angle mainly bears the radial and axial combined loads mainly based on radial load. It is often used in double and reverse installation. The inner and outer races can be installed separately, and the radial and axial clearance can be adjusted during installation and use. The large cone angle is mainly subjected to axial and radial combined loads mainly based on axial loads. Generally, it is not used alone to withstand pure axial loads. When paired configuration (relatively installed at the same name), it can be used to withstand pure radial loads.
  • 932 938 LM603049 33014

  • SKF, CHIK

Availability:
Quantity:

Hot sale 932 938 LM603049 33014 Tapered Roller Bearings

Model NO.
932 938 LM603049 33014
Type
Tapered Roller Bearing
Rolling Body:
Roller Bearing
Precision: P6, P5, P4, P3...
Clearance:
C2, C0, C3, C4, C5
Hardness
HRC 60-65
Vibration:
Z1V1, Z2V2, Z3V3, Z4V4
Rings Material:
GCr15
Feature:
Low Noise. Long Life
Seals Type:
OPEN
Service:
OEM Service, Sample Available
Export Markets:
Global
Quality Control: 100% inspected Number of Row: Single Row
Packaging Details: Carton Box or Plywood Box +Pallet OR as per your requirement
Application:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining .etc

Tapered Roller Bearing

Bearing No.
d(mm)
D(mm)
B(mm)
Weight(kg)
932/938
114.3 212.725
66.675 10.1
368/362
50.8
90
22.225
0.514
368A/362A
50.8
88.9
22.225
0.5
368/363
50.8
90
22.225
0.546
387/382
57.15
98.425
21.946
0.596
390/394A
57.15
110
21.996
0.908
462/453X
57.15
104.775
29.317
1.01
527/522
44.45
101.6
36.068
1.37
535/532A
44.45
111.125
36.957
1.79
639213
15
42
13.5
0.095
11590/11520
15.875
42.862
14.288
0.102
LM11749/LM11710
17.462
39.878
14.605
0.084
LM11949/LM11910
19.05
45.238
16.637
0.12
639177
20
43
12
0.086
LM12748/LM12710
21.43
45.237
16.637
0.12
M12649/M12610
21.43
50.005
18.288
0.172
LM12749/LM12710
21.987
45.237
16.637
0.116
LM12749/LM12711
21.978
45.975
16.637
0.121
JL22349/JL22310
22
41
14.4
0.079
L44643/L44610
25.4
50.292
14.732
0.126
M84548/10
25.4
57.15
19.431
0.23
LM44649/LM44610
26.988
50.292
14.732
0.118
L45449/L45410
29
50.292
14.732
0.113
LM67048/LM67010
31.75
59.131
16.764
0.183
LM67045/LM67010
31.75
59.131
18.57
0.192
LM48548/LM48510
34.925
65.088
18.288
0.257
JL69349/JL69310
38
63
17
0.197
LM29749/LM29711
38.1
65.088
18.288
0.251
U399/U360L
39.689
73.04
22.075
0.351
48685/48620
412.875
200.025
41.28
3.43
HM212047 / HM212011
63.5
122.238
38.1
1.95
ST4090
40
90
25.25
1.5

CEISO 质量认证en

CHIK BEARING PACKING

1.Poly sleeves +Single box(with chik mark ) +Carton;

2.Industrial packaging ;

3.Customer design (Oem service).


CHIK BEARING DELIVERY

1.Small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.

2.Large quantity, can delivery by air,by sea ,this is port to port.

packing and delivery-1


CHIK BEARING established in 2015, is a professional bearings manufacturer integrating the research, development and sales. We have a floor area of 15,000 square meters and a plant area of 8,800 square,equipped with modern production equipment and advanced detection instruments.Our major products include deep groove ball bearing,tapered roller bearing,spherical roller bearing and other kinds of high precision bearings.


CHIK BEARING has the latest measurement and quality assurance systems,utilizing high quality and precise messuring equipment. with which we conduct all necessary tests to gurantee high quality of entire production.Each production process is also in strict accordance with the ISO9001 quality management system, which effectively guarantees the precise of products and stability of the performance. CHIK bearings have been widely applied to metallurgical, mining, petroleum, chemical, papermaking and engineering machinery industries.

Our Factory

Factory-2



Quality promise

1. What is the market scope?

Our bearings are sold globally,Among them, it is sold to the domestic market (30.00%), North America (8.00%), South America (8.000%), Eastern Europe (8.00%), Nordic Europe (8.00%), Western Europe (7.00%), Southern Europe (7.000%), Southeast Asia (5.00%), Middle East (5.00%), East Asia (5.00%), and Africa (4.00%). We have a professional foreign trade service team of 5-10 people.


2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;


3.What can you buy from us?

Ball Bearing,Roller Bearing.


4. Why should you buy bearing from us?

Chik has been successful cooperation with many overseas customers, leaving good reputation of credibility with a high-quality product quality. With adequate resource, strict quality control, high-quality service, and competitive price.


5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW;

Accepted Payment Currency:USD;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English


For more detailed information, please contact us!
