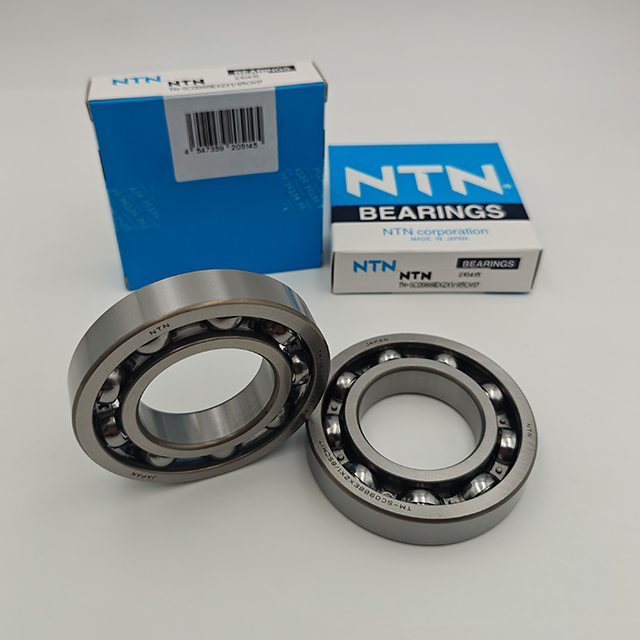

TM-SC0988EX2X1 85CM17 45x85x17 JF015E Deep Groove Ball Bearing

CHIK supplies NTN TM-SC0988EX2X1 85CM17 bearings. This 45x85x17 mm single-row deep groove ball bearing is specified for secondary pulley cover side service in JF015E / RE0F11A applications. Bulk purchasing, OEM packaging and mixed-model sourcing are available for transmission specialists, bearing distributors and importers. MOQ: 180 pieces.

Model:
TM-SC0988EX2X1 85CM17
Brand:
NTN

Size:	45x85x17 mm
Structure Type:	Single-row deep groove ball bearing
Application:	Automotive CVT gearbox
Installation Position:	Secondary pulley cover side
Transmission Model:	JF015E / RE0F11A
OE / Cross Reference:	F-845409 / 85CM17
Availability:

Quantity:



Inquire Add to Basket

TM-SC0988EX2X1 85CM17 Bearing Technical Description

TM-SC0988EX2X1 85CM17 is a single-row deep groove ball bearing with a 45 mm bore diameter, 85 mm outside diameter and 17 mm width. It is used at the secondary pulley cover side in JF015E / RE0F11A applications.

Its deep raceway geometry supports radial loading together with axial loading in either direction while maintaining smooth shaft rotation. At the specified installation position, the bearing supports the rotating component and maintains alignment within the gearbox assembly.

Before replacement, confirm the exact TM-SC0988EX2X1 85CM17 designation, 45x85x17 mm boundary dimensions, secondary pulley cover side and JF015E / RE0F11A equipment code. Verify the cross references F-845409 / 85CM17 against the removed bearing or the transmission parts list.
