TM-SC0988EX2X1 45x85x17 JF015E CVT Deep Groove Ball Bearing

CHIK manufactures TM-SC0988EX2X1 bearings for JF015E and RE0F11A automotive CVT service. This 45x85x17 mm single-row deep groove ball bearing is supplied for secondary-pulley replacement programs, bulk purchasing, OEM packaging and consolidated orders. MOQ: 150 pieces.

Model:
TM-SC0988EX2X1
Brand:
CHIK / OEM

Size:	45x85x17 mm
Structure Type:	Single-row Deep Groove Ball Bearing
Application:	Automotive CVT Gearbox
Installation Position:	Secondary Pulley Cover Side
Transmission Model:	JF015E / RE0F11A
OE / Cross Reference:	F-845409 / 85CM17
Availability:

Quantity:



Inquire Add to Basket

TM-SC0988EX2X1 Bearing Technical Description

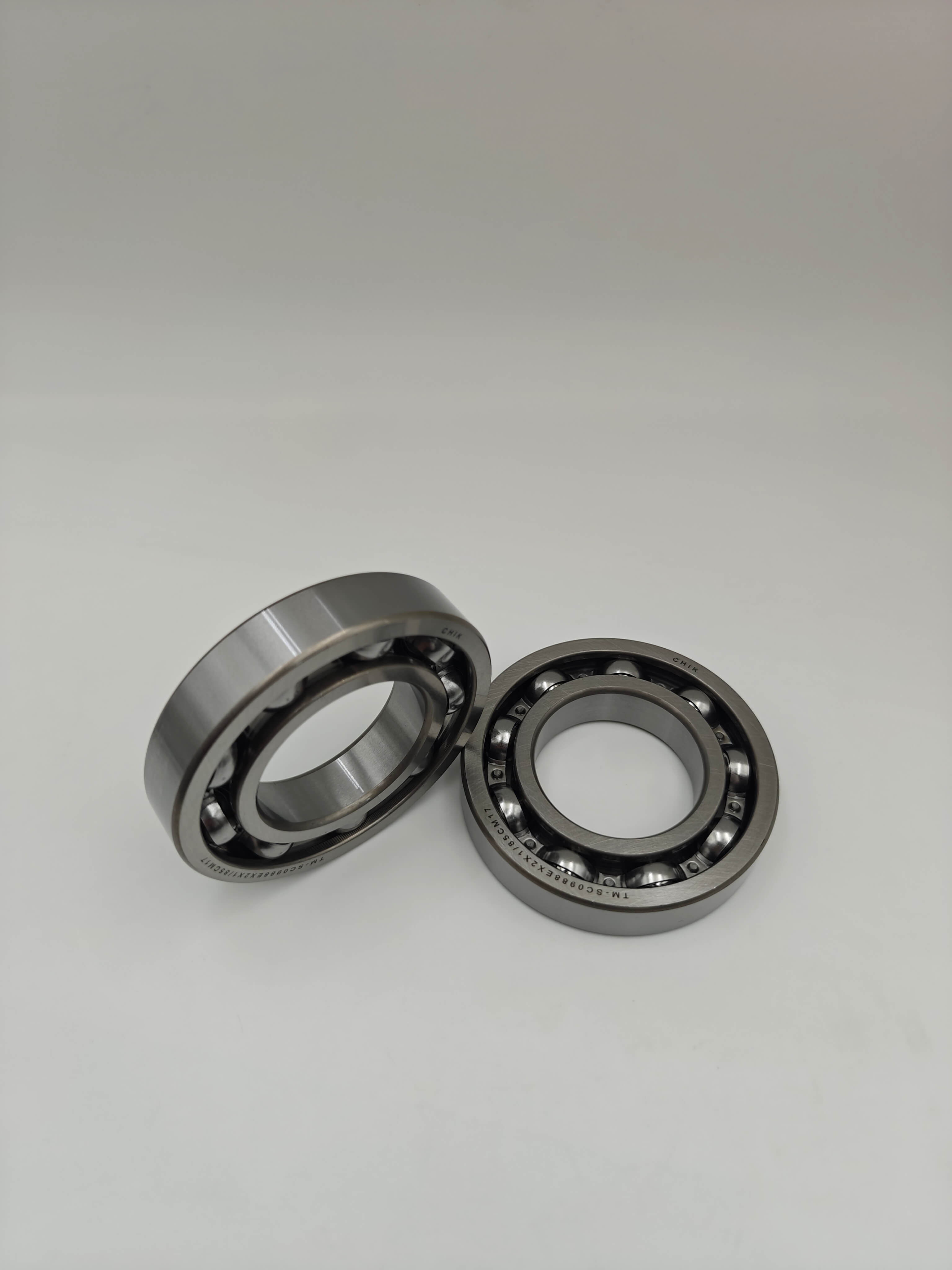

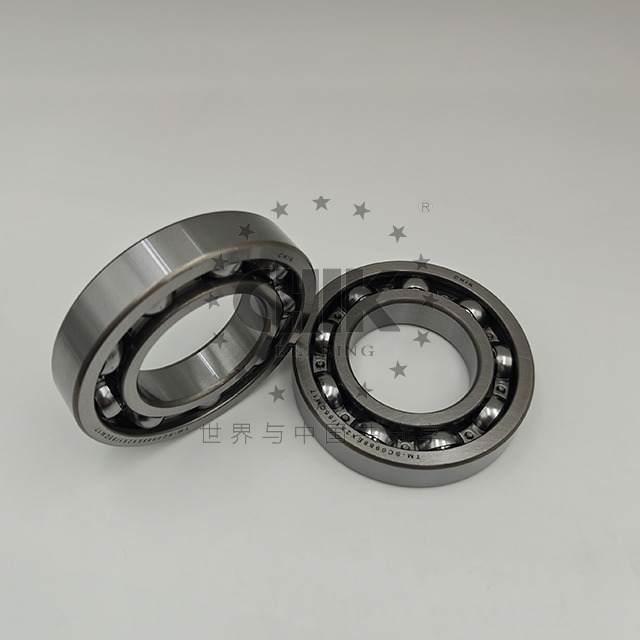

TM-SC0988EX2X1 is a single-row deep groove ball bearing with a 45 mm bore diameter, 85 mm outside diameter and 17 mm width. It is used on the secondary-pulley cover side in JF015E and RE0F11A automotive CVT gearboxes.

The deep raceway geometry supports radial load together with axial load in either direction. In the secondary-pulley assembly, the bearing supports shaft rotation and maintains the pulley position within the transmission.

Before replacement, verify the TM-SC0988EX2X1 designation, 45x85x17 mm dimensions, secondary-pulley cover-side position, JF015E or RE0F11A transmission code and cross reference F-845409 or 85CM17 against the removed bearing and repair parts list.
