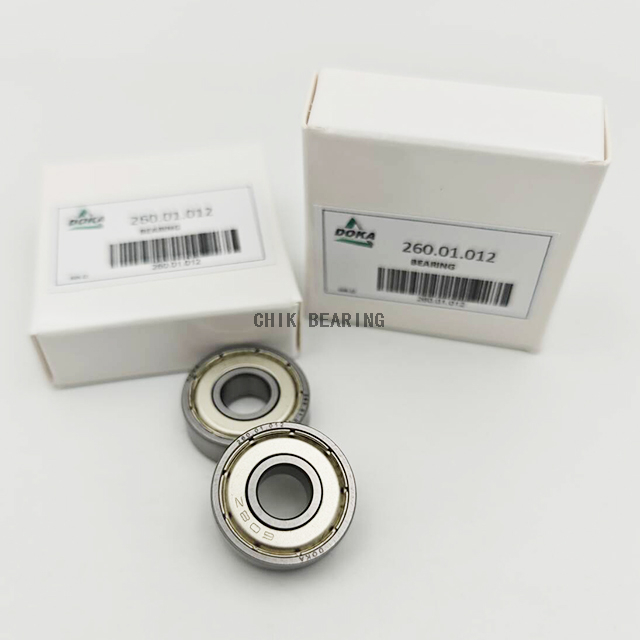

Custom logo 608Z 6200RS 6203RS 6205RS Deep groove ball bearings in large stock

Series：	608Z 6200RS 6203RS 6205RS	Type	Deep Groove Ball Bearing
Rolling Body:	Ball Bearing	Separation:	No
Load Direction:	Radial	Precision:	P6, P5, P4, P3
Clearance:	C1, C2, C3, C4, C5	Hardness	HRC 60-65
Vibration:	Z1V1, Z2V2, Z3V3, Z4V4	Rings Material:	GCr15
Cages Material:	SPCC, PA46, PA66, Copper, Stainless Steel	Seals Type:	ZZ, LLB, Z, LB, LLH, LLU, RS, 2RS
Service:	OEM Service, Sample Available	Export Markets:	Global
Quality Control:	100% inspected	Number of Row：	Single Row
Packaging Details：	Carton Box or Plywood Box +Pallet OR as per your requirement
Application：	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining .etc

778c66e3f9d644a0cfecb27d0483dc1a

Bearing NO.	Shape Dimension								basic Load Rating		Max Speed		Weight
	Shape Dimension								basic Load Rating		Max Speed
	Bore		Outer Diameter		Width		Radius		Dynamic	Static	Grease	Oil
	Bore		Outer Diameter		Width		Radius		Dynamic	Static
	d		D		B		r min		Cr	Cor
	mm	inch	mm	inch	mm	inch	mm	inch	kN		rpm		(kg)
6000	10	0.394	26	1.024	8	0.31	0.3	0.0118	4.58	1.98	20000	28000	0.018
6001	12	0.472	28	1.102	8	0.31	0.3	0.0118	5.1	2.38	19000	26000	0.02
6002	15	0.591	32	1.26	9	0.35	0.3	0.0118	5.58	2.85	18000	24000	0.026
6003	17	0.669	35	1.378	10	0.39	0.3	0.0118	6	3.25	17000	22000	0.036
6004	20	0.787	42	1.654	12	0.47	0.6	0.0236	9.38	5.02	15000	19000	0.069
6005	25	0.984	47	1.85	12	0.47	0.6	0.0236	10.1	5.85	13000	17000	0.075
6006	30	1.181	55	2.165	13	0.51	1	0.0394	10.18	6.91	10000	14000	0.116
6007	35	1.378	62	2.441	14	0.55	1	0.0394	12.47	8.66	9000	12000	0.155
6008	40	1.575	68	2.677	15	0.59	1	0.0394	13.1	9.45	8500	11000	0.185
6009	45	1.772	75	2.953	16	0.63	1	0.0394	16.22	11.96	8000	10000	0.231
6010	50	1.969	80	3.15	16	0.63	1	0.0394	16.94	12.95	7000	9000	0.25
6011	55	2.165	90	3.543	18	0.71	1.1	0.0433	23.28	17.86	7000	8500	0.362
6012	60	2.362	95	3.74	18	0.71	1.1	0.0433	24.35	19.35	6300	7500	0.385
6013	65	2.559	100	3.937	18	0.71	1.1	0.0433	24.66	19.74	6000	7000	0.41
6014	70	2.756	110	4.331	20	0.79	1.1	0.0433	29.68	24.2	5600	6700	0.575
6015	75	2.953	115	4.528	20	0.79	1.1	0.0433	30.91	26.06	5300	6300	0.603
6016	80	3.15	125	4.921	22	0.87	1.1	0.0433	36.57	31.36	5000	6000	0.821
6017	85	3.346	130	5.118	22	0.87	1.1	0.0433	39.04	33.75	4500	5600	0.848
6018	90	3.543	140	5.512	24	0.94	1.5	0.0591	44.63	39.16	4300	5300	1.1

CHIK BEARING PACKING

1.Poly sleeves +Single box(with chik mark ) +Carton;

2.Industrial packaging ;

3.Customer design (Oem service).

CHIK BEARING DELIVERY

1.Small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.

2.Large quantity, can delivery by air,by sea ,this is port to port.

packing and delivery-1

CHIK BEARING established in 2015, is a professional bearings manufacturer integrating the research, development and sales. We have a floor area of 15,000 square meters and a plant area of 8,800 square,equipped with modern production equipment and advanced detection instruments.Our major products include deep groove ball bearing,tapered roller bearing,spherical roller bearing and other kinds of high precision bearings.

CHIK BEARING has the latest measurement and quality assurance systems,utilizing high quality and precise messuring equipment. with which we conduct all necessary tests to gurantee high quality of entire production.Each production process is also in strict accordance with the ISO9001 quality management system, which effectively guarantees the precise of products and stability of the performance. CHIK bearings have been widely applied to metallurgical, mining, petroleum, chemical, papermaking and engineering machinery industries.

Our Factory

Factory-2

1. What is the market scope?

Our bearings are sold globally,Among them, it is sold to the domestic market (30.00%), North America (8.00%), South America (8.000%), Eastern Europe (8.00%), Nordic Europe (8.00%), Western Europe (7.00%), Southern Europe (7.000%), Southeast Asia (5.00%), Middle East (5.00%), East Asia (5.00%), and Africa (4.00%). We have a professional foreign trade service team of 5-10 people.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Ball Bearing,Roller Bearing.

4. Why should you buy bearing from us?

Chik has been successful cooperation with many overseas customers, leaving good reputation of credibility with a high-quality product quality. With adequate resource, strict quality control, high-quality service, and competitive price.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；

Accepted Payment Currency:USD;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English

For more detailed information, please contact us!
