T7FC065-Q-CL7C
SKF Bearing
| Quantity: | |
|---|---|

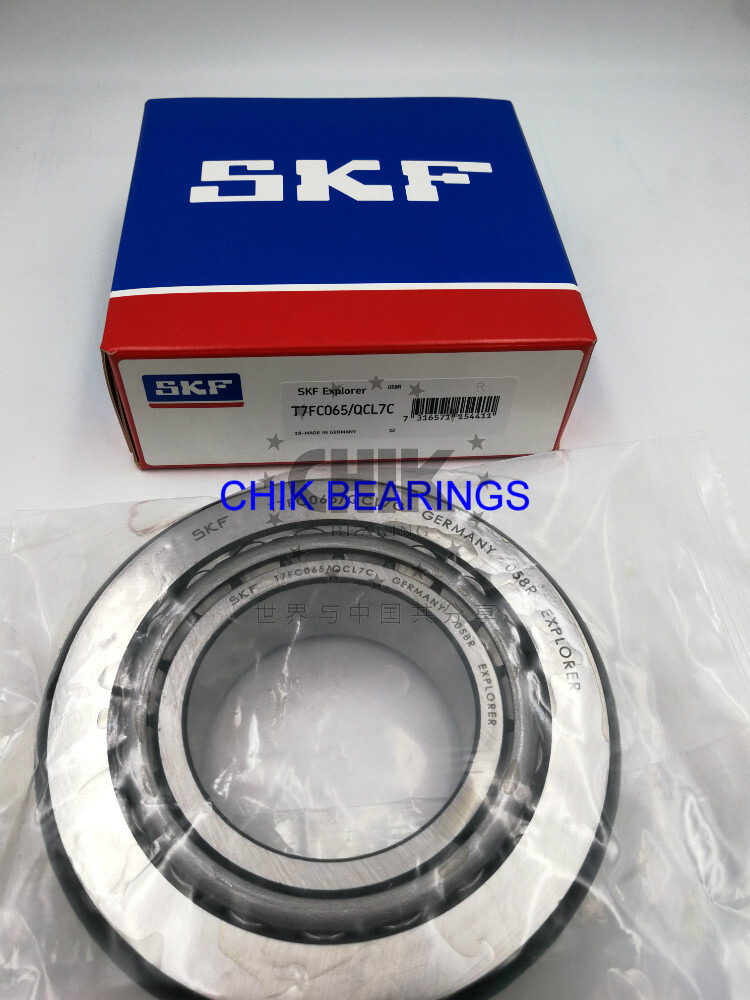

SKF T7FC065-Q-CL7C Bearing Parameters
I. Basic Dimensions
This bearing features an inner diameter of 65mm, an outer diameter of 130mm, and a total width of 37mm. The inner ring width is 33.5mm, the outer ring width is 28mm, and the minimum chamfer dimension is 2.5mm. Its standardized structural dimensions ensure strong adaptability.
II. Load Capacity and Service Life
The bearing's basic dynamic load rating is 157 kN, basic static load rating is 216 kN, and fatigue load limit is 25.5 kN. It delivers outstanding load-bearing capability, ensuring stable operation under heavy-duty conditions with reliable service life.
III. Speed Performance
Reference rotational speed under grease lubrication is 3400 r/min, with a maximum speed of 5000 r/min. This balance between operating speed and stability accommodates diverse rotational speed requirements.
IV. Additional Parameters
Bearing weight: 2.20 kg. Features a single-row tapered roller design with a stamped steel cage. Suffix “Q” denotes P6 precision grade, while “CL7C” indicates special heat treatment and surface finishing, significantly enhancing heavy-load capacity and fatigue resistance.
SKF T7FC065-Q-CL7C Bearing Parameters
I. Basic Dimensions
This bearing features an inner diameter of 65mm, an outer diameter of 130mm, and a total width of 37mm. The inner ring width is 33.5mm, the outer ring width is 28mm, and the minimum chamfer dimension is 2.5mm. Its standardized structural dimensions ensure strong adaptability.
II. Load Capacity and Service Life
The bearing's basic dynamic load rating is 157 kN, basic static load rating is 216 kN, and fatigue load limit is 25.5 kN. It delivers outstanding load-bearing capability, ensuring stable operation under heavy-duty conditions with reliable service life.
III. Speed Performance
Reference rotational speed under grease lubrication is 3400 r/min, with a maximum speed of 5000 r/min. This balance between operating speed and stability accommodates diverse rotational speed requirements.
IV. Additional Parameters
Bearing weight: 2.20 kg. Features a single-row tapered roller design with a stamped steel cage. Suffix “Q” denotes P6 precision grade, while “CL7C” indicates special heat treatment and surface finishing, significantly enhancing heavy-load capacity and fatigue resistance.
