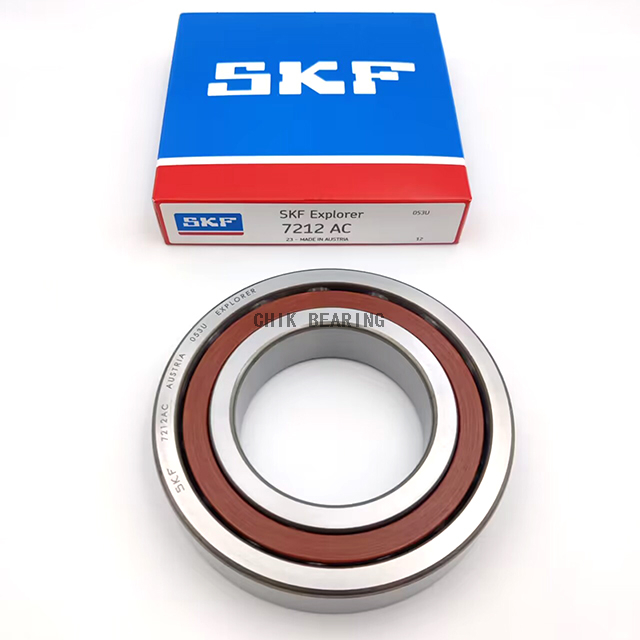

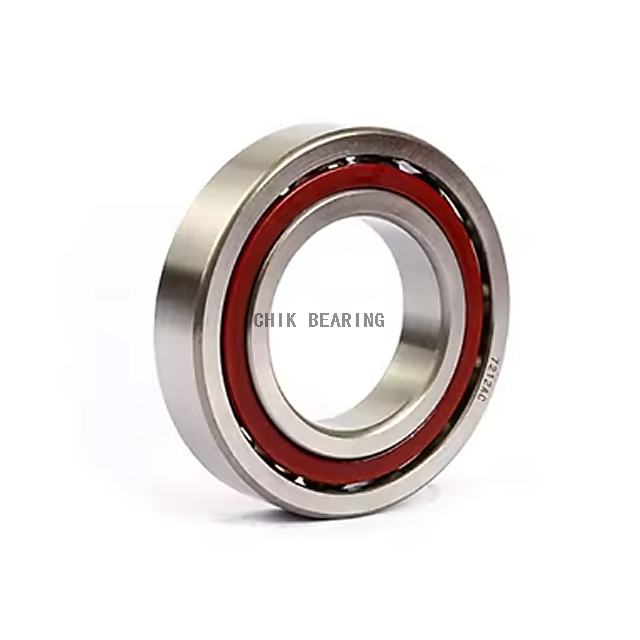

7212 7212AC 7214A 7224 Angle contact ball bearing China professional manufacturer supply

Model NO.	7212 7212AC 7214A 7224	Type	angular contact ball bearing
Rolling Body:	Roller Bearing	Precision:	P0 P6 P5
Clearance:	C0 C2 C3 C4 C5	Package:	Industrial Packing
Vibration:	V1 V2 V3 V4	Rings Material:	Chrome Steel GCR15
Feature:	High Precision, Durability, Low noise and Low libration	Seals Type:	ZZ RS OPEN
Service:	OEM Service, Sample Available	Export Markets:	Global
Quality Control:	100% inspectedSingle rowDouble row	Number of Row	Single row
Packaging Details：	1.Nuetral package + carton package 2.Carton package + pallet 3.Wood package + pallet for angular contact ball bearing
Application：	Agricultural Machinery;automobile and motorcycle，high frequency motors, gas turbines

cc89e0b1d3b77affbd389634180ccb0d

Bearing NO.	Principal dimensions			Speed ratings(r/min)		Basic load ratings		(kg)
Bearing NO.	d	D	B / C / T	Grease	Oil	Dynamic(kN)	Static(kN)	Mass
7200AC	10	30	9	4.65	2.2	29000	37000	0.031
7200C	10	30	9	5	2.35	40000	54000	0.031
7201AC	12	32	10	7.45	3.65	27000	34000	0.038
7201C	12	32	10	7.9	3.85	38000	50000	0.038
7202AC	15	35	11	8.1	4.25	24000	29000	0.048
7202C	15	35	11	8065	4.55	33000	43000	0.048
7203AC	17	40	12	10.2	5.5	21000	26000	0.07
7203C	17	40	12	10.9	5.9	29000	38000	0.07
7204AC	20	47	14	14.5	8.4	17000	22000	0.112
7204B	20	47	14	13.3	7.7	13000	17000	0.112
7204C	20	47	14	15.5	9	24000	32000	0.112
7205AC	25	52	15	15.3	9.5	15000	19000	0.135
7205B	25	52	15	14	8.7	12000	15000	0.135
7205C	25	52	15	16.6	10.2	21000	28000	0.135
7206AC	30	62	16	21.3	13.7	13000	16000	0.208
7206B	30	62	16	19.4	12.5	9600	13000	0.208
7206C	30	62	16	23	14.7	18000	24000	0.208
7207AC	35	72	17	28.1	18.6	11000	14000	0.295
7207B	35	72	17	25.6	17	8300	11000	0.295
7207C	35	72	17	30.4	20.1	15000	20000	0.295
7208AC	40	80	18	33.6	23.3	10000	12000	0.382
7208B	40	80	18	30.6	21.3	7500	10000	0.382
7208C	40	80	18	36.4	25.2	14000	18000	0.382
7209AC	45	85	19	37.7	26.6	9400	12000	0.43
7209B	45	85	19	34.3	24.3	7000	9400	0.43
7209C	45	85	19	40.8	28.7	13000	17000	0.43
7210AC	50	90	20	39.4	41.3	8500	11000	0.485
7210B	50	90	20	37.535.7	26.7	6400	8500	0.485
7210C	50	90	20	42.8	31.8	12000	16000	0.485
7211AC	55	100	21	48.7	37.1	7600	9500	0.635
7211B	55	100	21	44.1	33.8	5700	7600	0.635
7211C	55	100	21	52.9	40.2	11000	14000	0.635
7212AC	60	110	22	58.9	45.7	6900	8600	0.82
7212B	60	110	22	53.4	41.6	5100	6900	0.82
7212C	60	110	22	64	49.5	9500	13000	0.82
7213AC	65	120	23	67.3	54.2	6400	8000	1.02
7213B	65	120	23	60.9	49.3	4800	6400	1.02
7213C	65	120	23	73.1	58.7	8900	12000	1.02
7214AC	70	125	24	69.8	55.6	6100	7600	1.12
7214B	70	125	24	63.2	50.6	4600	6100	1.12
7214C	70	125	24	75.9	60.2	8400	11000	1.12
7215AC	75	130	25	79.2	65.2	5800	7200	1.23
7215B	75	130	25	71.7	59.3	4300	5800	1.23
7215C	75	130	25	86.1	70.6	8000	11000	1.23
7216AC	80	140	26	85.3	71.5	5400	6700	1.5
7216B	80	140	26	77.1	65	4000	5400	1.5
7216C	80	140	26	92.8	77.5	7500	9900	1.5
7217AC	85	150	28	98.6	83.6	5000	6300	1.87
7217B	85	150	28	89.2	76	3800	5000	1.87
7217C	85	150	28	107	90.6	7000	9200	1.87
7218C	90	160	30	123	105	6500	8600	2.3
7305B	25	62	17	22.9	13.3	10000	14000	0.243
7306B	30	72	19	27.6	17.4	8700	12000	0.362
7307B	35	80	21	32.5	20.2	7700	10000	0.475
7308B	40	90	23	39.7	25.2	6900	9200	0.657
7309B	45	100	25	50.6	34.1	6200	8200	0.875
7310B	50	110	27	64.4	44.3	5500	7300	1.14
7311B	55	120	29	74.3	52	5000	6700	1.45
7312B	60	130	31	84.9	60.3	4600	6200	1.81
7313B	65	140	33	96.1	69.3	4300	5800	2.22
7314B	70	150	35	108	78.9	4000	5400	2.7
7316B	80	170	39	127	100	3500	4700	3.85
7317B	85	180	41	137	112	3300	4400	4.53
7408B	40	110	27	64.9	40.4	5200	7200	1.23
7410B	50	130	31	90.2	60.4	4400	6000	1.92
7412B	60	150	35	119	86.7	3700	5100	2.85
7408BM	40	110	27	-	-	-	-	1.41
7416ACM	80	200	48	-	-	-	-	7

CHIK BEARING PACKING

1.Poly sleeves +Single box(with chik mark ) +Carton;

2.Industrial packaging ;

3.Customer design (Oem service).

CHIK BEARING DELIVERY

1.Small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.

2.Large quantity, can delivery by air,by sea ,this is port to port.

packing and delivery-1

CHIK BEARING established in 2015, is a professional bearings manufacturer integrating the research, development and sales. We have a floor area of 15,000 square meters and a plant area of 8,800 square,equipped with modern production equipment and advanced detection instruments.Our major products include deep groove ball bearing,tapered roller bearing,spherical roller bearing and other kinds of high precision bearings.

CHIK BEARING has the latest measurement and quality assurance systems,utilizing high quality and precise messuring equipment. with which we conduct all necessary tests to gurantee high quality of entire production.Each production process is also in strict accordance with the ISO9001 quality management system, which effectively guarantees the precise of products and stability of the performance. CHIK bearings have been widely applied to metallurgical, mining, petroleum, chemical, papermaking and engineering machinery industries.

Our Factory

Factory-2

1. What is the market scope?

Our bearings are sold globally,Among them, it is sold to the domestic market (30.00%), North America (8.00%), South America (8.000%), Eastern Europe (8.00%), Nordic Europe (8.00%), Western Europe (7.00%), Southern Europe (7.000%), Southeast Asia (5.00%), Middle East (5.00%), East Asia (5.00%), and Africa (4.00%). We have a professional foreign trade service team of 5-10 people.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Ball Bearing,Roller Bearing.

4. Why should you buy bearing from us?

Chik has been successful cooperation with many overseas customers, leaving good reputation of credibility with a high-quality product quality. With adequate resource, strict quality control, high-quality service, and competitive price.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW；

Accepted Payment Currency:USD;

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;

Language Spoken:English

For more detailed information, please contact us!
